How to Read a Topographic Map for Wilderness Navigation

Spread a topographic map out on the kitchen table for the first time and it doesn't look like much, just a page of thin brown lines that loop and crowd and fold back on themselves. Your trail is in there, along with the climb somebody warned you about and the creek you'll rock-hop around mile four. At first pass, though, it mostly looks like a bowl of brown spaghetti.

Reading it comes down to seeing terrain in those lines, the pitch of a climb or the stretch where an easy grade turns into real work. For anyone who spends serious time in the backcountry, it's a skill worth owning. Reading topographic maps gets much easier once you understand how contour lines, map symbols, and elevation work together to tell the story of the landscape.

Backpackers out for days at a stretch, hunters and anglers working beyond cell service, and off-trail travelers well past the last trail sign are all a long way from help when navigation fails. It happens often enough to plan around. Battery failure, cracked screens, and lost signal are all common reasons to carry a paper map. A paper map asks for none of that, and it shows the shape of a whole drainage at once, the way a two-inch blue dot never will. Learning to read one builds the navigational skills that are fundamental in orienteering, backcountry travel, and wilderness navigation, and those skills become even more valuable the farther you travel from maintained trails.

If you're wondering how to read a topo map, this guide will walk you through the fundamentals so you can confidently interpret the terrain before you ever set foot on the trail.

Key Takeaways

• Contour lines are what turn a flat sheet into a readable picture of the land. Once you can read them, you can see elevation, slope, and the shape of the terrain before you've walked a step.
• The legend, the scale, the contour interval, the map's orientation, and magnetic declination do most of the work. Get those down and the rest follows.
• Peaks, ridges, valleys, saddles, and depressions each show up as their own pattern in the contours, patterns you'll recognize on sight after a couple of maps.
• A paper topo map isn't just a backup. It's a survival tool when electronics fail.
• Once the map tells you what's coming, you can dress for it, whether that's articulated pants like the KÜHL RENEGADE™ for steep, high-stepping climbs or reinforced fabric like the RYDR™ when the route drags you through brush and rock.

Deciphering the Visual Language of a Topographic Map

A topo map fits shape, elevation, distance, and ground cover onto one flat page, and everything printed there is doing a job. If you're looking for a guide to topographic maps for beginners, all that information can feel overwhelming at first. But nearly every call you make in the field comes back to the same five things. Learn the legend, the scale, the contour lines, the magnetic declination, and the orientation data, and the rest of the map stops looking so busy.

Mastering the Map Legend and Map Scale

Start with the legend. It's the map's key, showing how trails, roads, buildings, campgrounds, rivers, boundaries, and vegetation are drawn. Most of it follows standard USGS standards, so the symbols carry over map to map. Editions differ, though, and checking costs you five seconds, so check.

Scale tells you how distance on paper relates to distance on the ground. Most current USGS quads print at 1:24,000, meaning one unit on the map equals 24,000 of the same units underfoot, or roughly one inch to 2,000 feet. That ratio matters the second you start comparing routes. Two trails can look nearly identical on the page until you measure between junctions and find one of them quietly tacks three miles onto the day. Read scale alongside the contours and you're not only counting distance; you're counting how much you'll climb.

Understanding Magnetic Declination and Map Date/Issue

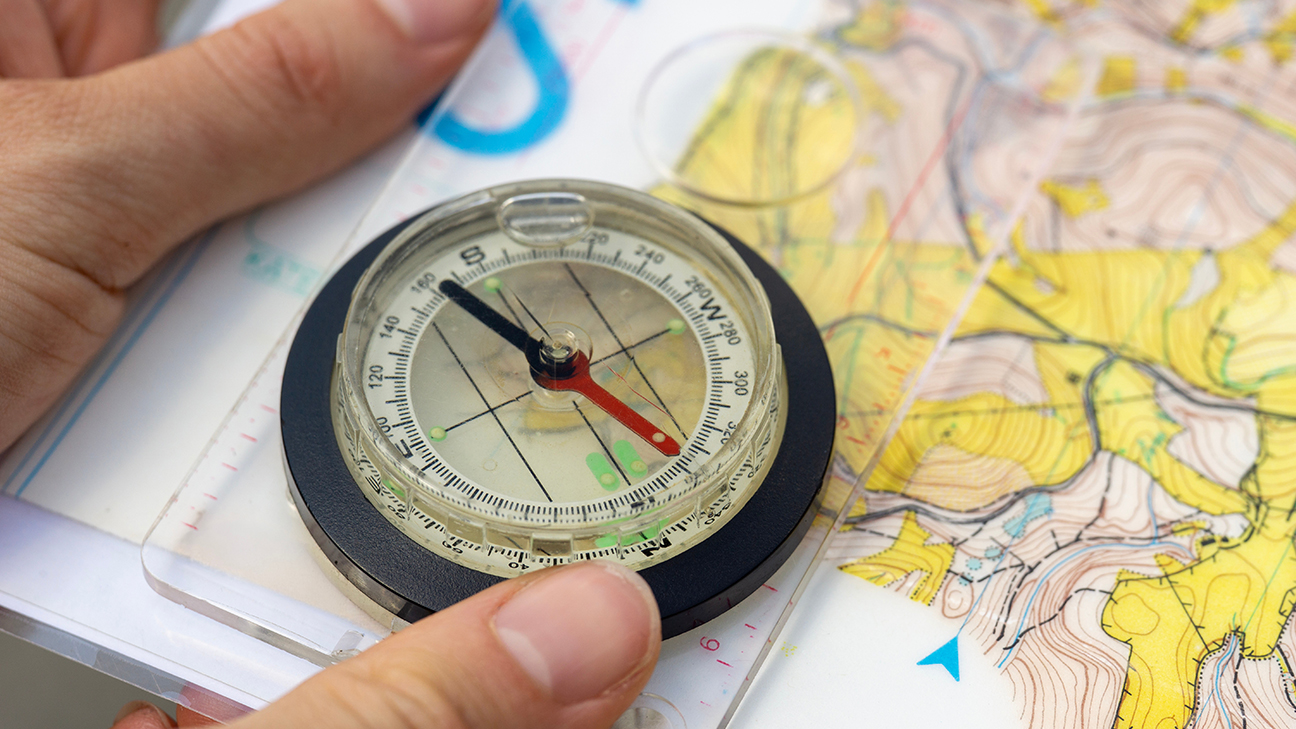

Every topo map carries orientation information, and the piece beginners skip most often is magnetic declination. Your compass needle points to magnetic north; the map is drawn to true north. The two rarely line up, and the gap between them, the declination, is the correction you apply when you shoot a bearing. Over a couple hundred yards you might never notice the error. Carry it across several miles of off-trail travel and you can walk well off your line without ever taking a wrong step.

Before taking a bearing, take a moment to locate the map's north arrow and declination diagram. Together they show how true north, magnetic north, and grid north relate on that specific map, so you can orient both the map and your compass correctly.

While you're checking the map's margin, look at the publication date too. Terrain holds still, but roads, bridges, trails, and the odd rerouted stream don't. An old quad is still worth having for the shape of the land; just don't trust it to show a forest road or footbridge built after it went to press.

Calculating Elevation Using Contour Line Intervals

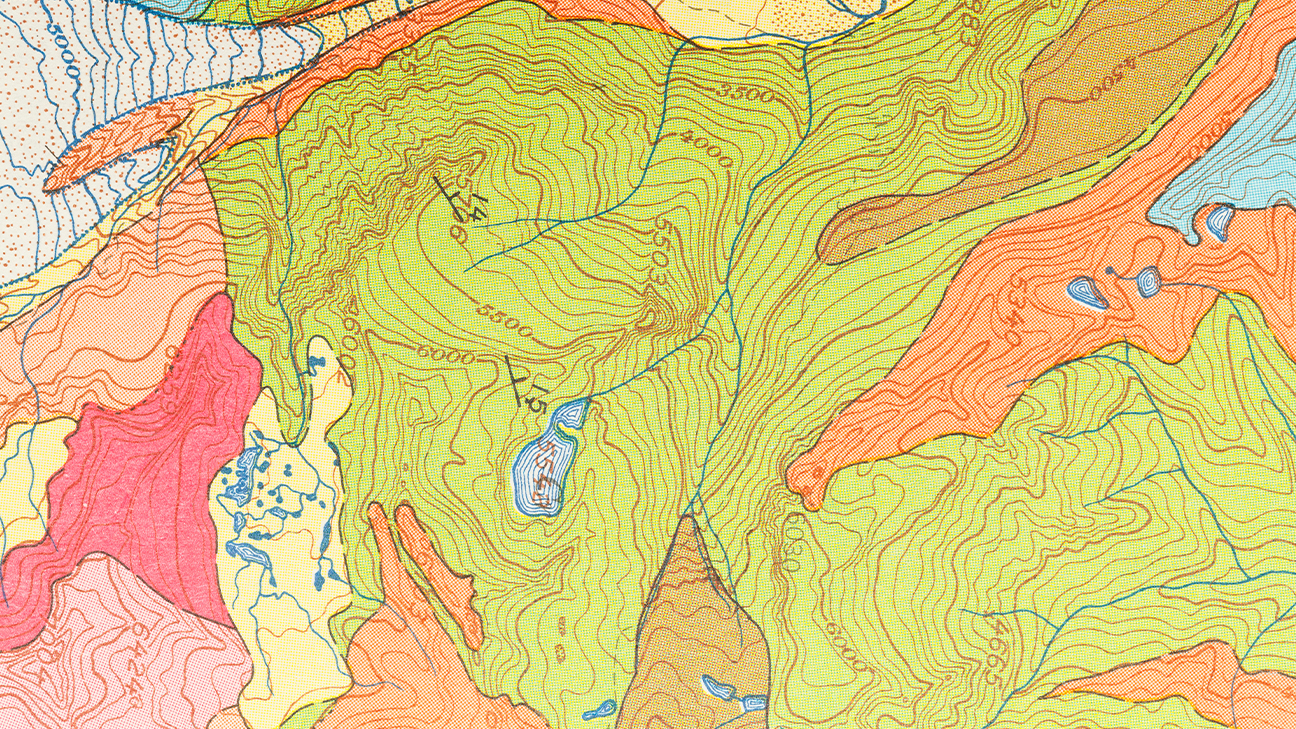

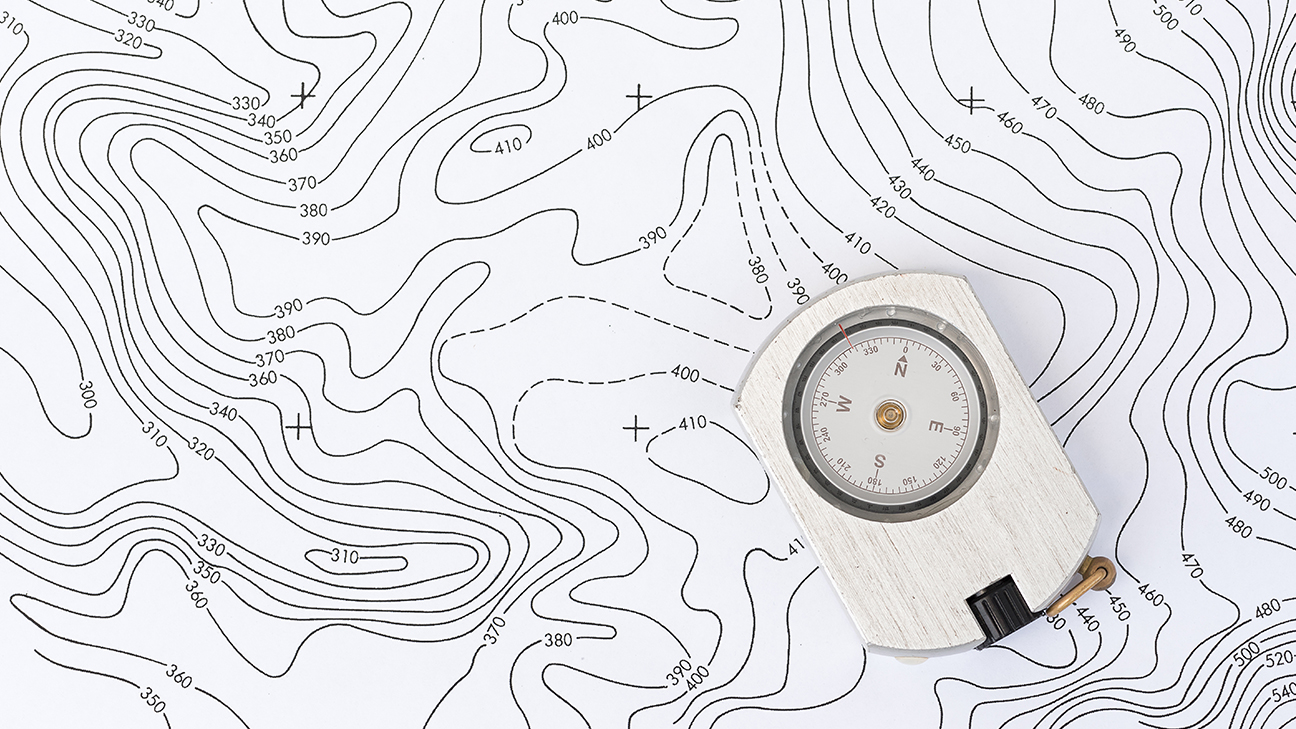

Calculating elevation on topo maps starts with understanding contour intervals. Every elevation shown on a USGS topo map is measured relative to mean sea level. Trace the outer edge of each layer and you've got a contour line, and every point on that line sits at the same elevation. Follow one around and you neither gain nor lose height.

The vertical distance between one line and the next is the contour interval, printed in the map's margin. It might be 20 feet on one quad and 40 or 80 on another, depending on how rugged the country is. Once you know that number, elevation is arithmetic. Find a labeled index contour, a heavier line with a number printed on it, then count the thinner lines up or down from there, adding or subtracting the interval as you go. If the nearest labeled line reads 4,000 feet and the interval is 40, the next line up is 4,040, then 4,080, then 4,120, on up the slope.

That gives you more than a number. It tells you how much climbing is stacked ahead, how fast the ground gains, and whether you're looking at a lazy sidehill or a straight shot up the fall line.

Differentiating Between Index and Intermediate Contours

Labeling every line would bury the map in numbers, so USGS quads use two kinds. Index contours are the heavier lines, printed with their elevation. Intermediate contours are the thinner lines between them, each one worth a single contour interval. To read any point, find the nearest labeled index contour and count the intermediate lines up or down, adding or subtracting the interval until you reach your spot. With practice, estimating elevation from nearby index contours becomes much faster.

USGS Map Series	Typical Scale	Typical Contour Interval*	Ground Distance
7.5-Minute Map (Quadrangle)	1:24,000	10 to 40 ft (terrain dependent)	1 inch ≈ 2,000 ft
15-Minute Quadrangle	1:62,500	20 to 80 ft (terrain dependent)	1 inch ≈ 1 mile

*Intervals change with the relief of the land. Flatter country gets tighter intervals; steep, high-relief terrain gets wider ones so the lines don't stack into a solid brown smear.

One thing catches almost everyone early. The contour interval measures vertical distance, never horizontal. Two lines a hair apart and two lines half an inch apart can represent the same 40-foot gain. The spacing tells you how steep it is; the interval tells you how much you climbed.

Visualizing 3D Landscapes from 2D Map Data

With the interval sorted, the next step is reading the shapes the lines make together. Taken one at a time, a contour is just a squiggle. Read them as a group instead, watching how tightly they bunch, which way they bend, and whether they close into rings. Think of contour lines as a simple 3D rendering of the landscape. Together they add up to a scale model of the land. Do this enough and you'll see the country in your head before your boots confirm it.

For a quick model of terrain shape, make a loose fist and look at the back of your hand. The knuckles are summits, the dips between them are saddles, and the tendons running back toward your wrist are ridgelines dropping away. Contour lines wrap real terrain the same way they'd wrap your hand, bunched tight over the steep knuckle and spread wide across the flat back. It's a cheap way to connect flat lines to a surface you can actually feel.

The Five Fundamental Rules of Contour Lines

Start from the one fact underneath all of them. Every contour joins points of equal elevation, so walking a single line means holding your altitude steady. From there, five rules cover nearly everything you'll read on the map:

1. Contour lines never cross or touch. A point of ground has one elevation, so two lines can't occupy it, barring a vertical cliff or overhang.
2. Closely spaced lines mean a steep slope. A lot of elevation packed into very little horizontal distance. Contour spacing is one of the quickest ways to estimate slope gradient.
3. Widely spaced lines mean a gentle slope. The grade eases as the lines spread out.
4. Where contours cross a valley or stream, the V's point uphill, back upstream toward the high ground the water drains down from.
5. Where they cross a ridge, the V's or U's point downhill, tracing the spine as it falls away.

Keep those five straight and you can make sense of unfamiliar terrain before you've named a single feature on it.

Identifying Landmarks and Specific Terrain Features

Most routes cross the same short list of features, and each leaves its own fingerprint in the contours. Learn the signatures once and you'll spot them at a glance.

Map Pattern	Terrain Feature	What It Is on the Ground
Concentric circles (closed loops), shrinking inward	Peak / summit	The high point, where the smallest inner ring is the top
V's or U's pointing downhill	Ridge (with spurs)	A spine of high ground running off a peak, and the ribs are spurs
V-Shaped Lines pointing uphill	Valley / drainage / stream	A low line where water collects and runs, with draws between the spurs
Hourglass or figure-eight between two high points	Saddle	The low gap between two peaks, often where trails cross
Lines nearly touching, almost merged	Cliff	Near-vertical ground that can hide an impassable rock band
Closed loop with inward tick marks (hachures)	Depression	A pit or basin such as a sinkhole, crater, or dry kettle

The one worth burning in is the valley-versus-ridge tell, because it's how you find uphill on unfamiliar ground. Water drains out the open end of a V, so wherever the V's point, that's the high side. Ridges flip it. The V's and U's ride the spine and point down as it drops. On the map, the ribs running off a ridge are your spurs, and the little gullies between them are draws.

Saddles are worth knowing for a practical reason. That low cinch between two summits is usually where a trail crosses from one drainage to the next without making you go over the top. And give cliffs a hard look in the planning stage. A quarter inch of bunched lines can hide a rock band that's slow, exposed, or flatly impassable, the sort of thing you'd rather find at the kitchen table than at 11,000 feet.

All of this is what lets you size up a climb before you're on it. Take two trails, three miles each, near-identical on the page. One runs through widely spaced contours, an easy grade through a forested valley; the other cuts straight across bunched lines to gain a ridge. Same distance, different day entirely. One's a walk; the other has you stopping to breathe every hundred feet. Seeing that in advance is what lets you set an honest pace and pick the line that fits whoever's actually in the group. This kind of route scouting helps you choose the safest and most efficient path before leaving the trailhead.

Understanding Color Coding and Terrain Symbols

Contours give you shape. Color and symbols fill in the rest, the water, timber, roads, trails, and campsites, everything that isn't elevation. Each legend spells out its own set, but modern USGS quads hold to consistent color conventions, so once the code sticks you can pick up an unfamiliar map and read it cold.

Color	Usually Represents
Brown	Contour lines, elevation, landforms
Blue	Water, from lakes and rivers to streams and marshes
Green	Forest and dense vegetation
Black	Man-made features like buildings, roads, trails, boundaries, and labels
Red	Major roads, survey grids, or edition-specific revisions
White	Open ground with little or no tree cover

Those colors carry weight next to the contours. A route with mellow lines can still crawl if it threads solid green timber, while an open ridge on the same elevation profile might let you move fast.

Defining Color Standards for Water and Forest Cover

Blue is water in all its forms, from perennial streams as solid lines to seasonal ones dashed, plus lakes, ponds, and the tint or symbol used for marsh. Green is vegetation dense enough to matter, the forest and heavy brush you'll be pushing through rather than walking past. White isn't "nothing." It's open ground, meadow or rock or alpine above treeline, where you won't have shade or trees to break the wind. Reading blue and green together tells you a lot about a day before you start, both where you'll find water and where you'll be fighting vegetation to reach it.

Recognizing Map Symbols, Hachures, and Specialized Features

A few symbols are worth singling out. Hachures, the short tick marks hanging off a contour, flag ground that drops away inside a closed loop. That's how the map shows a depression instead of a hill, a crater or a sinkhole or a dry kettle. Without them, a ring around a low spot would read exactly like a ring around a summit. Beyond that, the USGS symbol set runs deep, covering mines and quarries, benchmarks, springs, gates, power lines, glaciers, and permanent snowfields. In alpine terrain, contour patterns can also reveal distinctive landforms such as cirques and sharp ridges known as arêtes. You don't need all of it memorized. You need to notice when a symbol is telling you something that changes the plan, then check it against the legend or the USGS topographic map symbols guide.

Preparing Performance Gear for Steep and Rugged Terrain

Read the map well and you pack for the ground you'll actually cross, not just the forecast. The contours tell you how steep the climbing runs, the colors tell you whether you're headed into open alpine or thick timber, and the two together tell you how much scrambling and bushwhacking stands between the trailhead and camp. All of that should influence what you wear.

When the contours stack up tight, you're looking at a real climb, with big steps, hands on rock here and there, and a lot of hip and knee flexion. That's where articulated hiking pants earn their keep. An articulated knee design and a gusseted crotch, the way the KÜHL RENEGADE™ series is cut, keeps the fabric from fighting you on every high step, which is the difference between a climb that feels athletic and one that keeps snagging your stride.

When the route crosses brushy sidehills, coarse granite, or long off-trail stretches, durability moves to the top of the list. Reinforced, abrasion-resistant fabric (the KÜHL RYDR™ pants are built for exactly this) shrugs off the branches and rock that shred lighter material. When the map goes green, take the hint and dress for hours of pushing through vegetation.

A couple of things the map implies but doesn't spell out. Elevation moves temperature. A hike that starts warm in the valley can top out several thousand feet up in wind and cold, so layers you can shed and add beat any single "right" jacket. And exposure comes with the terrain. Long ridgelines and open alpine give almost no shade, so sun sleeves, a brimmed hat, and sunglasses stop being optional the higher and more open you go. The map showed you the shape of the day; let it pick your kit too.

Building a Digital-to-Analog Navigation Workflow

Digital tools have made trip planning almost too easy, and they're at their best when a little real map sense sits behind them. Most people start on a screen (Gaia GPS, CalTopo, AllTrails), measuring mileage, checking elevation gain, downloading offline layers before they leave the house. Keep doing that. Learning how to use topo maps alongside digital tools gives you the best of both worlds. A paper quad doesn't replace any of it; it covers the ways the screen fails. Nothing to discharge, no signal to lose, and a wide read on the whole landscape that's genuinely hard to piece together on a phone. Carry both and you get live tracking from one and a dependable analog backup, plus the big picture, from the other. That combination also provides valuable GPS redundancy if one navigation method fails.

To build the skill instead of just reading about it, try this on your next trip. Pick a peak you can see on the horizon and find it on the map. Then hold the two side by side. Does the ridge you traced as a gentle line really look gentle, or is it a narrower spine than the contours let on? Is the drainage as deep in person as it read on paper? That back-and-forth, checking what the lines promised against what's actually in front of you, is how the flat-to-3D translation wires itself in. Do it a handful of times and you quit decoding the map consciously; you just read it.

Conclusion

None of this clicks all at once. Early on you'll count lines deliberately, flip back to the legend, work out the colors one at a time. After a few maps, the process begins to feel more instinctive. You look at the page and just see it, the grade of the climb and the run of the ridge and the creeks funneling down off the high ground. Getting there changes how a day in the backcountry feels. You're reading the terrain before you reach it instead of reacting to it underfoot, setting your pace and making your calls up front. Whether you're heading out for an afternoon loop or a week in the backcountry, a topographic map gives you a clearer sense of the country and more confidence moving through it.
